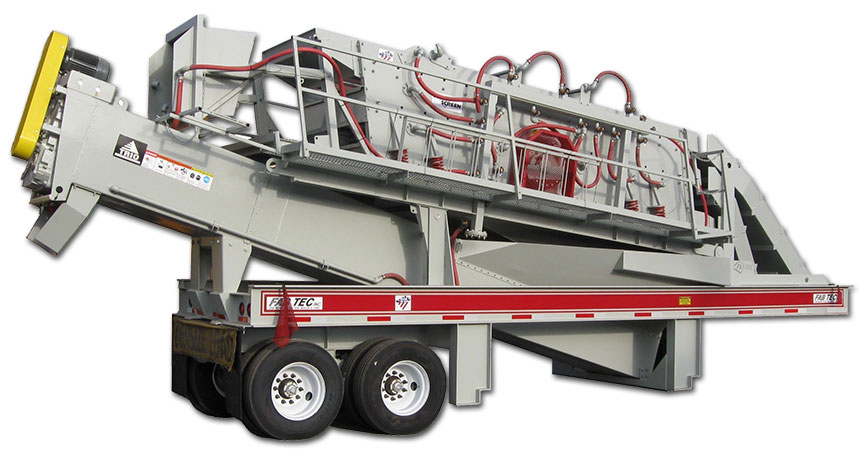

Pro 5' x 16' Three Deck Wash Plant

Action Photos


Pro 5x16 3 Deck Incline Screen:

  • 20 HP TEFC with pivot motor base and belt drive.
  • 3/8" PL side walls.
  • Huck bolted screen decks, constructed of 4" x 3" x 3/8" angle iron and 3" x 2" rectangular tubing, 1⁄2" x 3" FB crown bars.
  • AR lined discharge lips.
  • AR lined feed box.
  • Alco high temper isolation springs.
  • 100 MM F.A.G. spherical bearings designed for shaker screens.
  • Center support tube 9" with 1⁄2" wall and 2" thick flanges.
  • FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall.
  • Eccentrics with add on weights.
  • 10" WF sub frame 33# with C8"x 13.75# cross members.
  • Standard side tension formed clamp bars and 1⁄2" crown bar rubbers.



36"x25' Sandscrew:

  • 15 HP TEFC Teco Motor.
  • Greasable lower bearing, rubber sealed with bearing spacer for trouble free use.
  • Extra thick replaceable wear plates, tube & spiral.
  • 100 TPH MAX. CAPACITY material size 3/8".



(3) AR Lined discharge chutes w/ easy access to product conveyor.
(10) Spray Bar Wash System

  • Brass "Vee Jet" nozzles, 1⁄2" spray bars.
  • Brass individual gate valves for each spray bars.
  • Full length water manifold with inlet pipe and flange.
  • Maximum capacity 657 GPM at 40 PSI. Best results are at 450 GPM at35 psi.
  • 18" Walkways both sides of screen, back 48" platform, skywalk floor, 3" toe boards, 42" tubesteel handrails, and access ladder.

Tandem Axle Carrier 16" WF Beams 50#

  • Hutch 9700 series suspension.
  • 22,500# Standard forge axles.
  • 11:00x22.5 Tires, 10 hole hub piloted wheels.
  • Standard 5th wheel plate, brakes, lights, & mud flaps.

Safety guards, sandblasted chassis, rust inhibitor primer, and two finish coats included.

Travel Height14'3", Operating height 16',Width 10'.
Axle wt. 26,340#. Pin wt. 13,260#. Total 39,600#.

Options:
Feed slurry box with spray bars.
