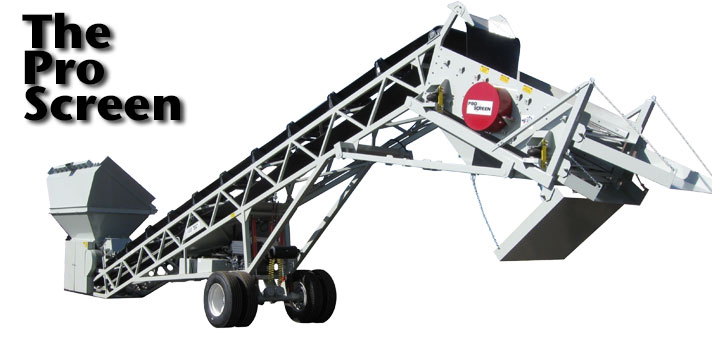

Proven in the field as a high producing, self contained unit
The 4'X 8' Two Deck Pro Screen features:
  • 80 MM spherical F.A.G. bearings in machined bearing housings.
  • 4150 stress proof shaft.
  • Firestone air mounts to isolate screen vibration.
  • Square wall screen decks with standard side tension clamp bars.
  • The second deck screen can be easily replaced with our end tension type deck for high production in fine screening.
Pro Screen Deck
ProScreen Deutz Plant

The Deutz Model FL42011 Air Cooled Diesel power plant has proven to be the best for our self-contained applications and includes a full one year warranty; 12 Volt starting system, and shut down protection.

The Truss Frame of the 30" X 47' Main Conveyor is the strongest in the industry - Constructed of 4" x 2" and 2" x 2" tube-steel. Cross members form a 30" deep truss frame.

The 6.5 Cubic Yard Feed Hopper has a weighted feed gate that meters the flow with easy adjustment. This design allows the large rock to pass without damaging the feed belt.

The Separating Grid Grizzly has 6” standard openings and is easily cleaned with a loader bucket by simply lifting up on the lifting lug, as every other grizzly bar lifts as a unit.

ProScreen Hopper Gate
ProScreen Doors

Controlled Feed of the 24" X 5' Belt Feeder is the key for high production. High quality components include Series "C" carrier rollers on 10" centers, 3 Ply belt with 1/4" cover, and access doors for maintenance and inspection.

All Components are from leading USA brands which are easily obtainable when replacement time comes.Our hydraulic components include: Mataris pumps, Eaton motors, Gresen spool valves, and 2500 psi Cylinders. Our hydraulic system has full filter protection.



Made Proudly In America

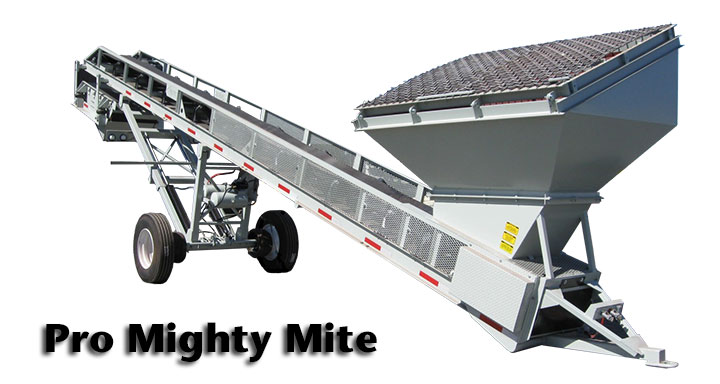

Pro Mighty Mite

SPECIFICATION

  1. 26" Deep frame, 2"x2"x1/4" angle iron top rails; C8x11.5 bottom rail.
  2. Undercarriage 4"x4" and 31/2x31/2 tube steel telescoping struts.
  3. 22,500 lbs.axle w/11:00x22.5 tires, ten hole hub piloted wheels.
  4. Lights, mudflaps, and air brakes provided.



4.25 C.Y, 1/4" PLATE FEED HOPPER WITH ADJUSTABLE WEIGHTED FEED GATE.

HEAVY DUTY 8 FT WIDE SCREEN CLOTH TYPE GRIZZLY (JOINED AND HINGED TO LIFT FOR CLEANING).

  1. Designed to accept standard 6’x8’ long screen cloth.



MAIN FEED CONVEYOR 24"x40': 7 1/2 HP TEFC MOTOR

  1. Falk 5203 reducer.
  2. Dodge SCM bearings and 2 ply belt 3/16" cover.
  3. Close setting on Cema B sealed idlers in feed area, then 48" spacing.
  4. Vulcanized lagged head pulley, self cleaning wing tail pulley.
  5. Manual raise and lower with hydraulic options available.



3'x6' SINGLE DECK PRO INCLINE SCREEN:

  1. OLI2900/8 shaker motor.
  2. Screen mounted on 116 Firestone airbags.
  3. 1/4" plate sidewalls.
  4. Screen deck is fastened with huck bolts.
  5. 6x6x1/2” angle iron subframe.
  6. Screen cloth protector rubber and clamp bars provided.
  7. Rust inhibitor primer and two finish coats.



OPTIONS:
12V HYDRAULIC RAISE AND LOWER:

  1. 12V Delta hpx-200 power unit.



SWITCH GEAR:

NEMA 4 ENCLOSURE WITH START AND STOP BUTTONS ON DOOR AND FIREUP WARNING HORN MOUNTED ON STAND, TO INCLUDE THE FOLLOWING STARTERS:

  1. (1) 7.5 HP conveyor starter.
  2. (1) 2 HP screen starter.



SELF CONTAINED OPTION:

  1. 20 HP Honda engine.
  2. Industrial 460V, 11Kw generator.
  3. 10 gal fuel tank.
  4. 12V battery & battery box.
  5. Mounted in self-leveling fashion.
