Stackers

Stackers

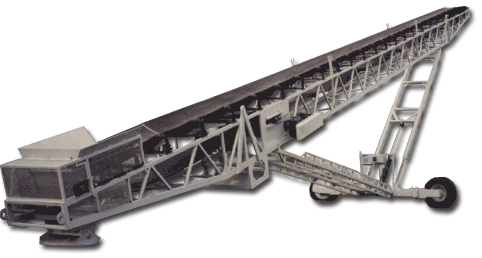

Radial Stacking Conveyors
Fab Tec Conveyor Components Make the Difference

28” Truss Construction:

  • C8 x 11.5# Channel main rail
  • 2 x 2 Tube steel top rail
  • C4 x 5.4# Channel verticals
  • 3” SCH. 40 Pipe cross members

Belt Sizes:

18” x 12’ TO 48” x 80’

Capacity:

At 350 fpm belt speed, basic capacities include up to 300 tph at 24" belt width; up to 600 tph at 30" belt width; and up to 900 tph at 36" belt width.



CALL (208) 883-8433 for the Fab Tec dealer nearest you.



Stacker Details

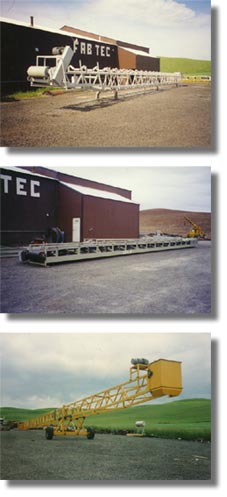

Overland Style Conveyor 24" x 80' to 48" x 115' 41" Truss frame This truss can span 100'. Optional walkway.
Standard Stackable Field Conveyor 24" x 40' to 48" x 80' 28" Truss Stackable style, rugged construction and easy to haul.
Wheel Conveyors (Also known as "Grasshoppers" in the mining industry) This unit is quick to move and very rugged. It is built in lengths up to 150'. Also with wrap drive option at lower section of conveyor.

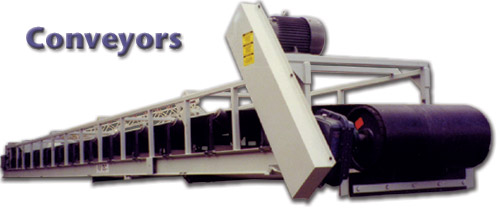

Conveyor Components





Fab Tec, Inc
P.O. Box 8006 Moscow, ID 83843 (208) 883-8433
