Radial Stackers

  • Reduce stockpile costs
  • Cut labor and maintenance cost
  • Build higher and more uniform stockpiles.
  • Provide more than one size product with the same unit.
  • Graduation spec's are not jeopardized with the power raise and lower system.

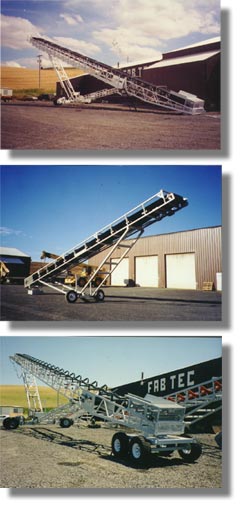

Portable Radial Stacker
24" x 80' to 42" x 115' Radial Stackers fold at both ends for travel.
Standard over-the-top or side fold options
Standard 5th wheel plate for easy transportation.
Hydraulic power raise and radial travel.
41" Truss frame.



Pro Radial Stacker
Our Rugged Pro Radial Stackers. 24" x 40' to 42" x 60' is tube-steel constructed for strength and light weight. Like the rest of our Radial Stacker line, they are affordable, dependable, and they will stand by you. This is the same type of Radial Stacker we use with our Pro Hydraulic Screening Plants.





Pro Radial Stacker
Our Rugged Pro Radial Stackers. 24" x 40' to 42" x 60' is tube-steel constructed for strength and light weight. Like the rest of our Radial Stacker line, they are affordable, dependable, and they will stand by you. This is the same type of Radial Stacker we use with our Pro Hydraulic Screening Plants. “S” drive on Stackers over 80’ for balance and easier maintenance.



Features:

Fab Tec uses only top leading brands: Dodge bearings, Falk shaft mount reducers, Precision idlers, and Teco TEFC motors. All components are readily available.

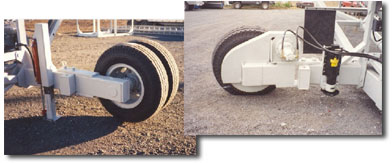

Fab Tec Radial Stacker axle assemblies are designed to suit your needs and load requirements.

Power jacking system to assist transferring wheels from radial to forward or reverse is optional.

Fab Tec Radial Stackers feature a 5' Recieving Hopper with adjustable skirt board wipers and wear strips in hopper.

Fab Tec Radial Stackers have a rugged 3/8" plate pivot stand assembly.

Fab Tec Radial Stackers Up to 115' are highly portable and highway legal, which fold at both ends.

Our Radial Stacker axle assemblies are designed to suit your needs and load requirements.

Power jacking system to assist transferring wheels from radial to forward or reverse is optional.
