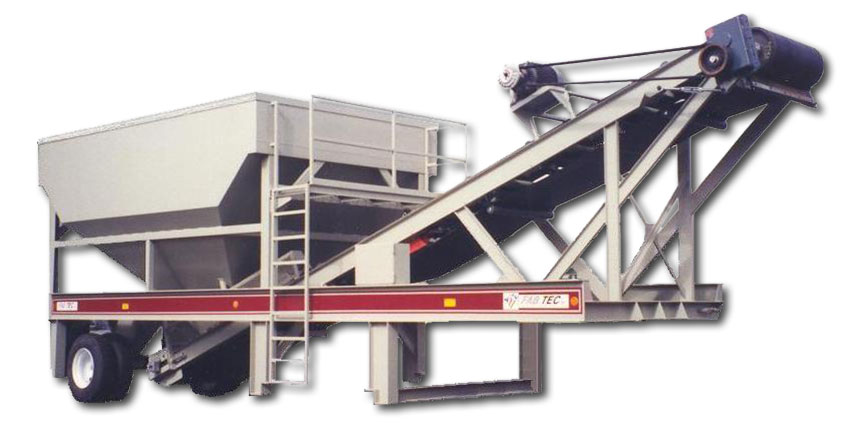

Portable Load Out Bunker

Load Out Bunker


40 OR 45 C.Y. Hopper:
  • 3/8” Plate
  • Adjustable Wt. feed gate
Observation Platform:
  • 42” tube steel handrail
  • 3.14# expanded metal walkway
  • 3" toe kick
  • Access Ladder
42"x32 ft Discharge Conveyor:
  • 40 HP Teco Motor
  • Falk 5307 shaft mount reducer for 40 C.Y.
  • Falk 5315 shaft mount reducer for 45 C.Y.
  • Dodge SCM bearings,
  • 3 ply belt with 1/4" cover.
  • 16” vulcanized lagged head pulley, and self cleaning wing tail pulley.
  • CEMA C sealed TE idlers 12” C/C in hopper
Main Frame:
  • W16 wide flange main beam
  • 22,500 lb. axle w/ 11.00 x 22.5 dual tires on 10 hole hub piloted wheels
  • Hutch leaf spring suspension
Options
  • Milltronic best scales
  • Solid state variable speed controller
  • Vulcanized spliced belts

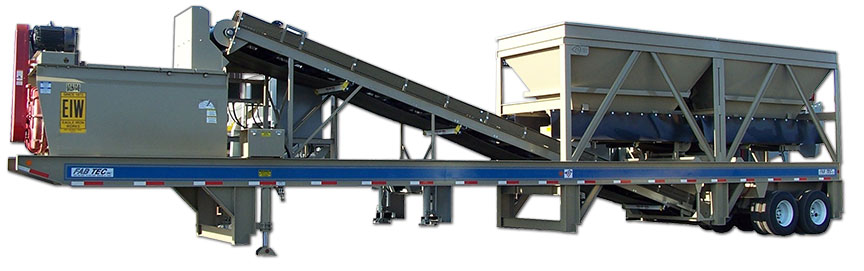

Pug Mills

Pug Mill

PORTABLE STABILIZED BASE MIXER

TANDEM AXLE CARRIER 18" WF BEAMS:

  1. Dual 11:00x22.5 tires, 22,500# axles,10 hole hub piloted wheels.
  2. Air brakes, lights and mudflaps.
  3. Ground support legs with jacking pads.



75 HP, 36” x 8’-6” PUG MILL.

8'x14' 1/4" PLATE TAPERED HOPPERS WITH REINFORCEMENT RIBS AND REINFORCEMENT SHELVES..

6"x6"x3/8" ANGLE IRON AND 6" CHANNEL 8.2 HOPPER SUPPORT FRAME.

(2) 30"x11' BELT FEEDER 15 HP TEFC:

  1. Vulcanized lagged head pulleys and self cleaning wing tail pulley.
  2. 3 PLY belt 1/4" cover with Flexco fasteners.
  3. Dodge SCM bearings, Falk 5215 reducers.
  4. 10" Spacing on Cema C carrier rollers.



42"x36' GATHERING CONVEYOR, 15 HP TEFC:

  1. Vulcanized lagged head pulley and self cleaning wing tail pulley.
  2. 3 PLY belt 1/4 "cover, 140# Flexco fasteners.
  3. Dodge SCM bearings, 5207 Falk reducer.
  4. 36" Spacing on Cema B sealed idlers.



FEED GATES ON BELT FEEDERS WITH SCREW TYPE ADJUSTMENTS. MIXER MOUNT WITH WALKWAY & LADDER ON ONE SIDE.

SAFETY GUARDS, SANDBLASTED CHASSIS, RUST INHIBITOR PRIMER, AND TWO FINISH COATS INCLUDED.

OPTIONS:

(2) YASKAWA 15 HP AC CONTROLLERS IN NEMA 12 ENCLOSURE:

2 OR 4 LEG PLANT MOUNTED FAB TEC HYDRAULIC STABILIZING SYSTEM:

1. 12 volt hydraulic package with safety-lok circuit.
2. 70,000 lb capacity hydraulic legs with heavy 1" footpads.



SELF CONTAIN 150 KW GEN SET WITH SWITCH GEAR:

  1. 150 KW generator set, heavy duty radiator and air cleaners.
  2. 110 Gallon diesel tank.
  3. Plant mounted switch gear in Nema 4 enclosure, start & stop buttons on door, fire up warning horn system.
  4. Starters for all motors including 2 extra 20 HP for outside conveyors.
  5. Wire not included for radial stacker and outside conveyors.

CALL 208-883-8433 for the Fab Tec dealer nearest you.
