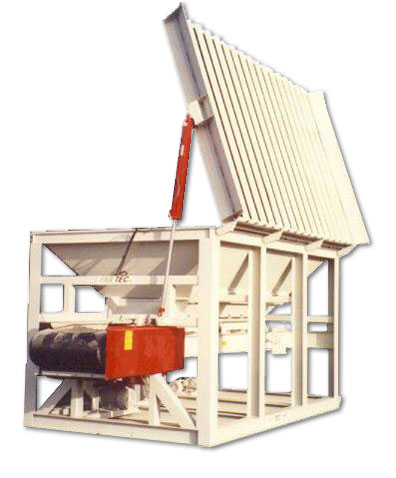

Skid Mounted 36" Belt Feeder


2 sizes to choose from.

12 OR 15 C.Y. Hopper:

  • >3/8” Plate
  • >Adjustable Wt. feed gate
  • 14 ft wide separating grizzly

36"x17 ft Belt Feeder:

  • 20 HP Teco Motor
  • Falk 5207 shaft mount reducer
  • Dodge SCM bearings,
  • 3 ply belt with 1/4" cover.
  • 16” vulcanized lagged head pulley self cleaning wing tail pulley.
  • 12" Centers on Cema C sealed carrier rollers

Hydraulic Dump Grizzly:

  • Grizzly bars 3/4"x6" FB and 1 1⁄2" round.
  • 10 HP TEFC, Vickers V20 pump with spool valve.
  • 4" Bore x 36" stroke cylinders.
  • Hydraulic tank with filter protection.

Options

  • Solid state variable speed controller
  • Feeder without grizzly
  • Removable side rubber curtains
