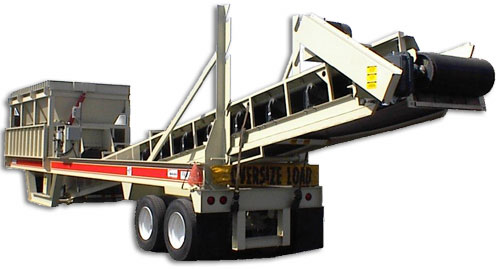

Adjustable 42” Belt Feeder

15 C.Y. Hopper:

  • 3/8” Plate
  • Relief shelf in hopper
  • Adjustable Wt. feed gate
  • 16 ft wide separating grizzly

Hydraulic Dump Grizzly:

  • Grizzly bars 3/4"x6" FB and 1 1⁄2" round.
  • 10 HP Vickers V20 pump w/ spool valve
  • 4" Bore x 36" stroke cylinders.
  • Hydraulic tank with filter protection.

42"x17 ft Belt Feeder:

  • 20 HP Teco Motor
  • Falk 5215 shaft mount reducer
  • Dodge SCM bearings,
  • 3 ply belt with 1/4" cover.
  • 16” vulcanized lagged head pulley self cleaning wing tail pulley.
  • 12" c/c on Cema C live shaft idlers

42” x40 ft Discharge Conveyor:

  • 20 HP Teco Motor
  • Falk 5215 shaft mount reducer
  • Dodge SCM bearings,
  • 3 ply belt with 1/4" cover.
  • 16” vulcanized lagged head pulley self cleaning wing tail pulley.
  • Adjustable discharge heights

Main Frame:

  • W18 wide flange main beam
  • 22,500 lb. axle w/ 11.00 x 22.5 dual tires on 10 hole hub piloted wheels
  • Hutch leaf spring suspension
  • Air brakes, light and mud flaps

Options

  • Feeder without grizzly
  • Solid state variable speed controller
  • Fold down side panels
  • Removable 2 ply rubber curtains
  • Hydraulic conveyor lift on discharge conveyor
